Using Timeular Tracker to display dice rolls on the Cosmic Unicorn

/images/timeular.gif

Have you ever wanted to create a physical display that responds to real-world interactions? In this tutorial, we’ll build a fascinating IoT project that combines Bluetooth Low Energy (BLE), WiFi, and LED matrix displays to create a responsive system where rotating a physical device instantly updates a display. You need a timeular tracker and a cosmic unicorn 32x32 matrix to actually be able to build this. But even if you do not own any of these components you can still learn how to setup a web server on a Raspberry PI Pico w and how to use the bartolome-ble-toolkit to connect to bluetooth periphals.

What We’re Building

Our project creates a seamless connection between three components:

  1. Timeular Tracker - A physical octagonal device that detects which side is facing up
  2. Go Application - A desktop/server application that reads the tracker via BLE using the Bartolome BLE Toolkit
  3. Raspberry Pi Pico W - A microcontroller running a web server that controls the LED display
  4. Cosmic Unicorn 32x32 LED Matrix - A vibrant display that shows large digits

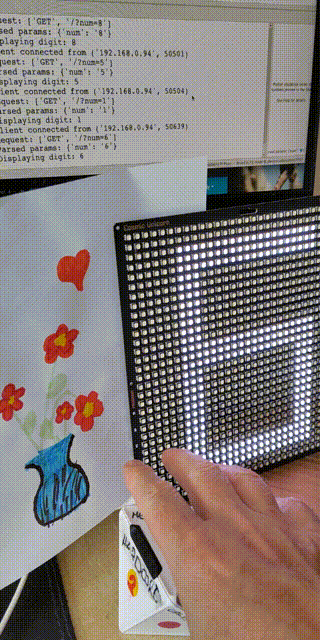

When you rotate the Timeular tracker to show side 5, the number “5” instantly appears on the LED matrix. It’s like having a physical remote control for your display!

Where is the code?

Here: https://github.com/coded-aesthetics/timeular-cosmic-unicorn

The Architecture

[Timeular Tracker] --BLE--> [Go App] --HTTP--> [Pico W Server] --GPIO--> [LED Matrix]
     (Physical)          (Computer)         (WiFi/Web)           (Display)

The data flow is beautifully simple:

  1. Timeular tracker broadcasts its current side via BLE
  2. Go application captures this data using Bluetooth
  3. Go app immediately sends HTTP GET request to Pico W
  4. Pico W receives the request and displays the digit on the LED matrix

Hardware Requirements

  • Timeular Tracker - The octagonal time-tracking device
  • Raspberry Pi Pico W - Microcontroller with WiFi capability
  • Pimoroni Cosmic Unicorn - 32x32 RGB LED matrix display
  • Computer with Bluetooth - To run the Go application (Windows, macOS, or Linux)

Setting Up the Cosmic Unicorn LED Display

First, let’s set up our LED matrix display server on the Pico W. This creates a web server that accepts HTTP requests to display digits.

Installing MicroPython on Pico W

  1. Download the latest MicroPython UF2 file for Pico W from micropython.org
  2. Hold the BOOTSEL button while connecting your Pico W via USB
  3. Copy the UF2 file to the RPI-RP2 drive that appears
  4. Install the Pimoroni MicroPython libraries for Cosmic Unicorn

The LED Display Server Code

The Pico W runs a complete web server that can display any digit (0-9) in large, readable format across the entire 32x32 matrix:

from cosmic import CosmicUnicorn
from picographics import PicoGraphics, DISPLAY_COSMIC_UNICORN
import network
import socket

# Initialize the display
cu = CosmicUnicorn()
graphics = PicoGraphics(display=DISPLAY_COSMIC_UNICORN)
cu.set_brightness(0.5)

# Define colors
WHITE = graphics.create_pen(255, 255, 255)
RED = graphics.create_pen(255, 0, 0)
GREEN = graphics.create_pen(0, 255, 0)
BLACK = graphics.create_pen(0, 0, 0)

def draw_thick_digit(digit, color=WHITE, thickness=3):
    """Draw a large digit filling most of the 32x32 display"""
    graphics.set_pen(BLACK)
    graphics.clear()
    graphics.set_pen(color)

    # Coordinates for well-proportioned digits
    left, right = 6, 26
    top, bottom = 2, 30
    middle = 14
    width = right - left
    height = bottom - top

    # Draw different digit patterns
    if digit == 1:
        x = 16 - thickness // 2
        graphics.rectangle(x, top, thickness, height)
        graphics.rectangle(x - 3, top + 2, 3, thickness)
    elif digit == 2:
        graphics.rectangle(left, top, width, thickness)
        graphics.rectangle(right - thickness, top, thickness, middle - top)
        graphics.rectangle(left, middle - thickness//2, width, thickness)
        graphics.rectangle(left, middle, thickness, bottom - middle)
        graphics.rectangle(left, bottom - thickness, width, thickness)
    # ... (additional digit patterns)

    cu.update(graphics)

Web Server with Query Parameter Handling

The server accepts HTTP requests with parameters to control what’s displayed:

def web_server():
    # Connect to WiFi
    wlan = network.WLAN(network.STA_IF)
    wlan.active(True)
    wlan.connect('YOUR_WIFI_NAME', 'YOUR_PASSWORD')

    while not wlan.isconnected():
        time.sleep(1)

    ip = wlan.ifconfig()[0]
    print(f'Server running on http://{ip}')

    # Create web server
    addr = socket.getaddrinfo('0.0.0.0', 80)[0][-1]
    s = socket.socket()
    s.bind(addr)
    s.listen(1)

    while True:
        try:
            cl, addr = s.accept()
            request = cl.recv(1024).decode('utf-8')

            # Parse query parameters
            params = parse_query_params(request)

            if 'num' in params:
                digit = int(params['num'])
                if 0 <= digit <= 9:
                    # Choose color based on parameter
                    color = WHITE
                    if 'color' in params:
                        if params['color'] == 'red':
                            color = RED
                        elif params['color'] == 'green':
                            color = GREEN

                    draw_thick_digit(digit, color, 3)

            # Send response
            cl.send('HTTP/1.1 200 OK\r\n\r\nOK')
            cl.close()

        except Exception as e:
            cl.close()
            print(f'Error: {e}')

The server responds to URLs like:

  • http://192.168.1.100/?num=5 - Display white “5”
  • http://192.168.1.100/?num=3&color=red - Display red “3”

Setting Up the Bartolome BLE Toolkit

The Bartolome BLE Toolkit provides a clean, Go-based interface for working with Bluetooth Low Energy devices, specifically designed for Timeular trackers.

Installing the Toolkit

go mod init timeular-display
go get github.com/coded-aesthetics/bartolome-ble-toolkit

Why Bartolome BLE Toolkit?

Traditional BLE programming involves complex connection management, device discovery, and protocol handling. Bartolome abstracts all this complexity:

  • Automatic Connection Management - Handles reconnections when devices disconnect
  • Device-Specific APIs - Pre-built support for Timeular protocol
  • Robust Error Handling - Graceful handling of Bluetooth stack issues

The Go Bridge Application

Our Go application serves as the intelligent bridge between the BLE world and the HTTP world:

package main

import (
    "fmt"
    "net/http"
    "time"
    "github.com/coded-aesthetics/bartolome-ble-toolkit/pkg/ble"
    "github.com/coded-aesthetics/bartolome-ble-toolkit/pkg/timeular"
)

func main() {
    // Create Timeular device with custom polling
    timeularDevice := timeular.NewDeviceWithConfig(timeular.Config{
        Name:         "Timeular Tra", // Your device name
        PollInterval: 500 * time.Millisecond,
    })

    // Create BLE manager
    manager := ble.NewManager()

    // Handle side changes
    timeularDevice.OnSideChange(func(deviceName string, side byte) error {
        // Validate the detected side
        if !timeular.IsValidSide(side) {
            fmt.Printf("⚠️  Invalid side: %d\n", side)
            return fmt.Errorf("invalid side: %d", side)
        }

        // Send HTTP request to Pico W
        picoURL := fmt.Sprintf("http://192.168.0.185/?num=%d", side)
        response, err := http.Get(picoURL)
        if err != nil {
            fmt.Printf("❌ Error updating display: %v\n", err)
            return err
        }
        defer response.Body.Close()

        fmt.Printf("🎲 Side %d -> LED Display updated\n", side)
        return nil
    })

    // Handle disconnections gracefully
    manager.SetDisconnectHandler(func(deviceName, address string, err error) {
        fmt.Printf("⚠️  Device disconnected: %v\n", err)
        fmt.Println("🔄 Attempting to reconnect...")
        timeularDevice.Reset()
    })

    // Configure and connect
    deviceConfig := ble.DeviceConfig{
        Name:               timeularDevice.GetName(),
        ServiceUUID:        timeularDevice.GetServiceUUID(),
        CharacteristicUUID: timeularDevice.GetCharacteristicUUID(),
        NotificationHandler: timeularDevice.ProcessNotification,
    }

    if err := manager.ConnectDevices([]ble.DeviceConfig{deviceConfig}); err != nil {
        log.Fatalf("❌ Connection failed: %v", err)
    }

    fmt.Println("✅ Connected! Rotate your Timeular to see changes on the LED display")

    // Keep running until interrupted
    select {}
}

The Magic in Action

Here’s what happens when you rotate your Timeular tracker:

  1. Physical Rotation - You flip the Timeular from side 3 to side 7
  2. BLE Detection - The tracker’s internal accelerometer detects the new orientation
  3. Bluetooth Broadcast - Timeular sends BLE notification with new side data
  4. Go Processing - Bartolome toolkit receives and validates the side change
  5. HTTP Request - Go app sends GET http://192.168.0.185/?num=7
  6. Display Update - Pico W parses the request and draws large “7” on LED matrix
  7. Visual Feedback - Bright, colorful “7” appears instantly on the 32x32 display

The entire process happens in under 100 milliseconds, creating a satisfying, real-time connection between physical and digital worlds.

Advanced Features and Customization

Color-Coded Sides

You can add color coding to make different sides more meaningful:

timeularDevice.OnSideChange(func(deviceName string, side byte) error {
    var color string

    switch side {
    case 1, 2, 3:
        color = "green"  // Work tasks
    case 4, 5, 6:
        color = "red"    // Break time
    case 7, 8:
        color = "white"  // Other activities
    }

    url := fmt.Sprintf("http://192.168.0.185/?num=%d&color=%s", side, color)
    // ... send request
})

Multiple Display Support

The architecture easily scales to control multiple displays:

displays := []string{
    "http://192.168.0.185", // Kitchen display
    "http://192.168.0.186", // Office display
    "http://192.168.0.187", // Living room display
}

for _, display := range displays {
    go func(url string) {
        http.Get(fmt.Sprintf("%s/?num=%d", url, side))
    }(display)
}

Time-Based Automation

Add scheduling logic to your bridge application:

timeularDevice.OnSideChange(func(deviceName string, side byte) error {
    now := time.Now()

    // Only update display during work hours
    if now.Hour() >= 9 && now.Hour() <= 17 {
        // Update display
    } else {
        // Maybe dim the display or show a clock
        http.Get("http://192.168.0.185/?mode=clock")
    }

    return nil
})

Troubleshooting Common Issues

Bluetooth Connection Problems

  • Permission Issues: Ensure your Go application has Bluetooth permissions
  • Device Discovery: Make sure the Timeular is powered on and not connected to other apps
  • Range Issues: Keep the Timeular within 10 meters of your computer

WiFi and HTTP Issues

  • Network Connectivity: Verify Pico W and computer are on the same network
  • Firewall: Check that port 80 is accessible on the Pico W
  • IP Address Changes: Consider using mDNS or static IP for the Pico W

Display Problems

  • Power Supply: Ensure adequate power for the LED matrix
  • Library Issues: Verify Pimoroni libraries are correctly installed
  • Memory: Monitor Pico W memory usage with complex displays

Extending the Project

This foundation opens up countless possibilities:

Integration with Productivity Tools

Connect your Timeular sides to:

  • Toggl/Harvest - Automatic time tracking
  • Slack Status - Update your status based on current activity
  • Philips Hue - Change room lighting based on activity type
